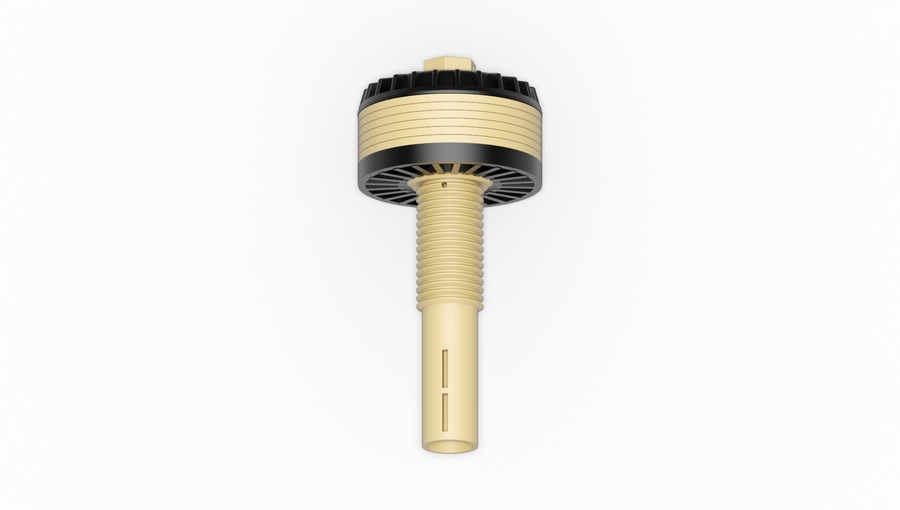

Type L-LR
The Type L / LR nozzle features stacked lamellae construction for exceptional strength and pressure resistance. Precision-engineered for slot widths as fine as 0.1 mm (+/- 0.05 mm), it’s equipped with a base plate for residual emptying down to the nozzle level. The LR variant includes a closed base plate to prevent media loss in compact contact areas under 65 mm diameter.
Slot Sizes by Colour
Slot Size by Colour
0.2mm Slot Size - Ivory 0.3mm Slot Size - Green
0.35mm Slot Size - White 0.5mm Slot Size - Grey
0.7mm Slot Size - Yellow 0.8mm Slot Size - Blue
1.0mm Slot Size - Black 1.5mm Slot Size - Orange -
2.0mm Slot Size - Green
- Lamellar Filter Nozzles
- All
Specifications
Technical Specifications – Type L / LR Filter Nozzle
| Specification | Detail |
|---|---|
| Manufacturer | KSH Germany |
| Model | Type L / LR |
| Design | Slotted filter nozzle with external thread connection |
| Slot Size | 0.2 mm |
| Typical Slot Area | ≈ 3.0 cm² |
| Connection Threads (ØA) | 1½″ WW (32 mm), G 3/4″ (26.5 mm), 1″ WW (25.4 mm), M24 (24 mm) |
| Thread Length (L1) | 25 mm / 45 mm (±5 mm) |
| Shaft Length (L2) | 80 mm, 110 mm, 140 mm |
| Head Diameter | 90 mm |
| Wrench Size | SW17 |
| Outlet Diameter (ØB) | 16 mm (≈ 2.0 cm²) / 21 mm (≈ 3.4 cm²) |
| Indicative Flow (Δp ≈ 0.1 bar) | Up to ≈ 3 m³/h (per KSH curves) |
| Installation | Direct screw-in mounting through nozzle base |
| Materials | PP or PVDF (per application) |
| Variant Notes | LR variant with reduced outlet |
| Exclusive NZ Distributor | Absorb It Ltd |
Downloads
Downloads
Video
Watch the Orthos 4-Part Filter Nozzle Series
Deepen your understanding of filtration system design with the Orthos’ four-part video series — Filter Nozzles 101, 102, 103, and 104.
Explore everything from material selection and screen slot widths to pressure drop dynamics and advanced tailpipe construction for air scour systems.
Whether you’re an engineer, designer, or filtration specialist, these videos unpack the science behind high-performance nozzle systems — helping you optimise efficiency, durability, and performance in every project.
